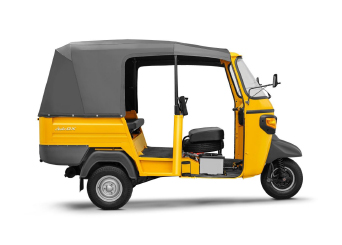

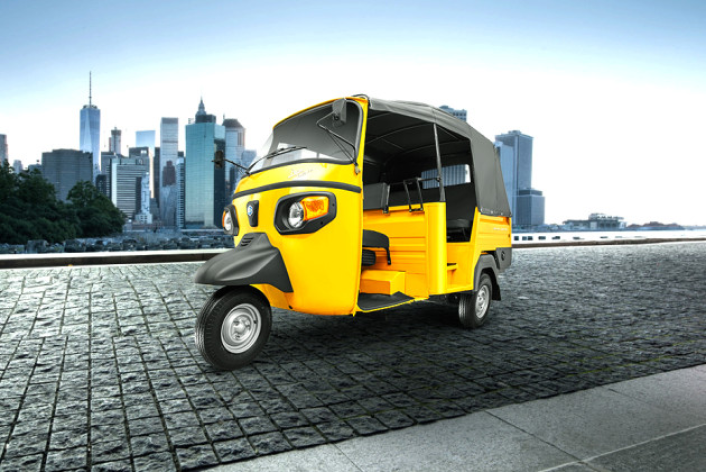

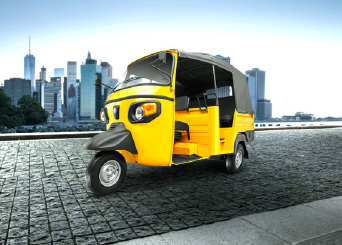

Ape Auto Dx

By revolutionizing the 3-wheeler cargo segment in the country, Piaggio, today, is setting global standards in multiple arenas of service. Equipped and engineered for higher fuel efficiency, rugged performance and outstanding load carrying capability.

Technical Specifications

BS III
Type Single Cylinder, naturally aspirated, air cooled
Displacement 435.6 cc
Max Power 8.04 HP (6 kW) @ 3600 rpm
Max Torque 21 Nm @ 2400-2200 rpm

BS III
Clutch Type Multi-disc, wet type
Gear Box Constant Mesh (4 forward & 1 reverse)

BS III
Front Helical Spring with Damper
Rear Rubber Spring with Damper
Steering Handle Bar Type
Brake Drum brakes hydraulically actuated internal expanding shoe type
Tyre 4.50-10, 8PR

BS III
System Voltage 12V DC
Battery Rating 50 Ah
Steering 10.5 Litres

BS III
Wheel Base 1920 mm
Overall Width 1465 mm
Overall Length 2940 mm
Overall Height 1840 mm
Ground Clearance 240 mm

BS III
Max Gradeability 23%

Ape Auto Dx Features

Kilometerage maximal 36 (+- 4) km/l

Cabine conductor confortable

Pick-up extra powerful

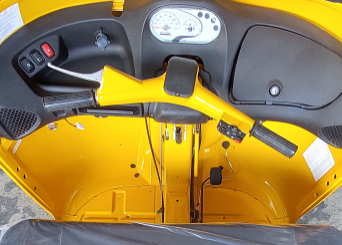

Improvised board table

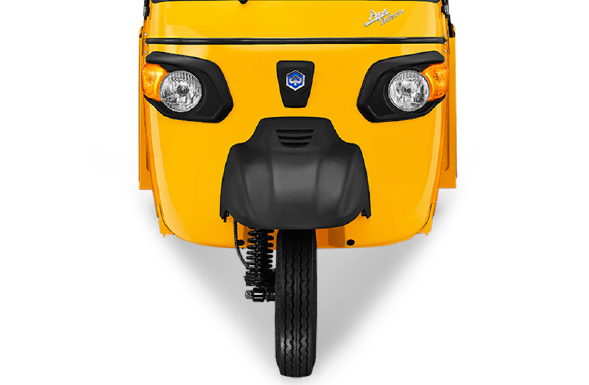

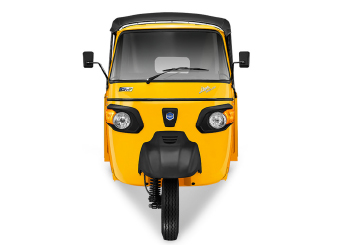

Vue avant contemporain

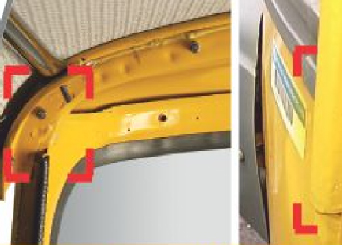

Dome front extra reinforced

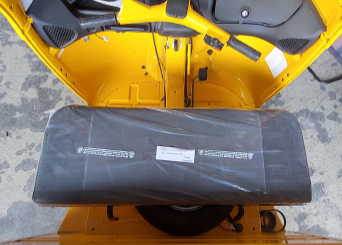

Driver's seat plus large

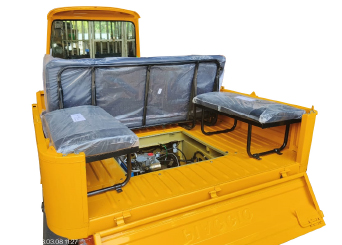

Place asise supplémentaire
