T2 Traveller Super Luxury

T2 travller has Mercedes derived, Highly Powerful and fuel efficient FM 2.6 CR Power train. We encourage innovation and motivate over strong team of design and development engineers to create path-breaking automotive designs.

Technical Specifications

  • Model : FM 3.2 CR
  • Emission : EURO IV
  • Type : 5 cylinder common rail
  • Displacement : 3245 cc
  • Max Power : 85 kW (114hp) @ 2800 rpm
  • Max Torque : 320 Nm @ 1400-2400 rp

  • Front : Semi elliptical leaf springs with hydraulic shock absorbers and anti roll bar
  • Rear : Semi elliptical leaf springs with hydraulic shock absorbers and anti roll bar

  • Type : 7.0 m

  • Type : Synchromesh
  • No. of gears : 5 Forward, 1 Reverse

  • Type : Power Steering

  • Wheel base : 4020
  • Overall Length : 6700
  • Overall Width : 2225
  • Overall Height : 2670 (2870 with AC)
  • Overhang Front : 900
  • Overhang Rear : 1850
  • Ground Clearance : 190

  • Type : : 215/75 R 15"

  • Front : Dead Rigid, I-Beam & Reverse Elliot Type
  • Rear : Live Rigid

  • Front : Dead Rigid
  • Rear : Live Rigid

  • Type : Hydraulic, Dual circuit, vacuum assisted with auto slack adjuster, ABS with EBD
  • Front : Disc Brakes
  • Rear : Disc Brakes
  • Parking : Mechanical on Transmission

  • Max FAW : 2080
  • Max RAW : 3670
  • Max GVW : 5750
  • Fuel Tank Capacity : 70 Liters
  • SEATING CAPACITY : 23+D

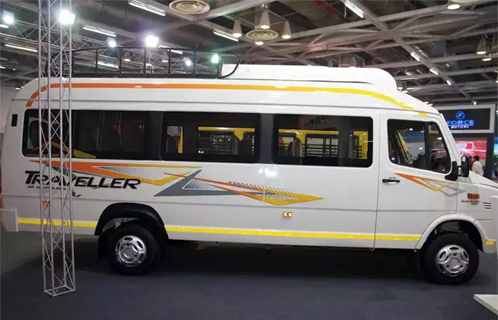

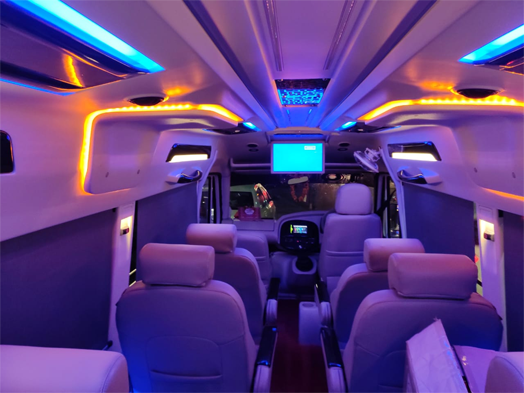

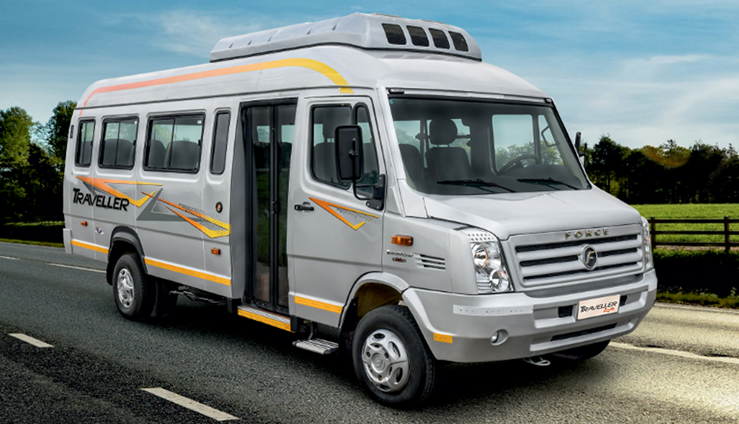

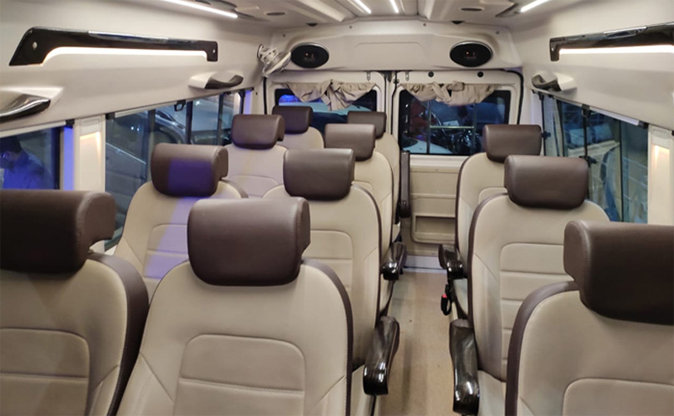

T2 Traveller Super Luxury Gallery
