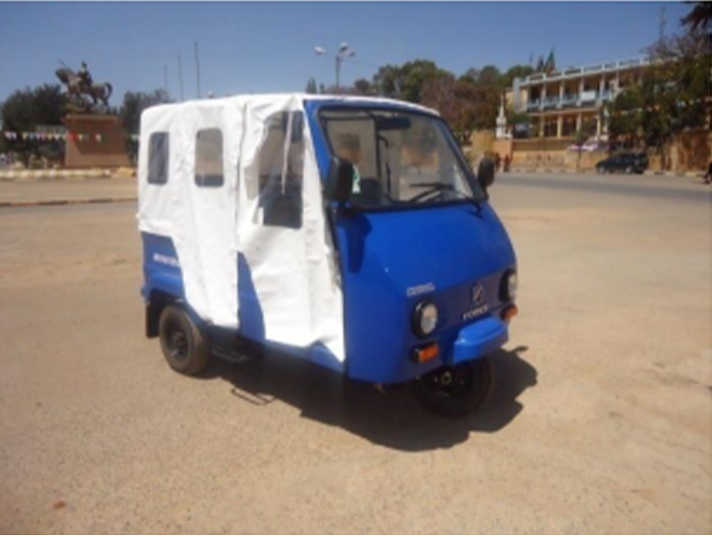

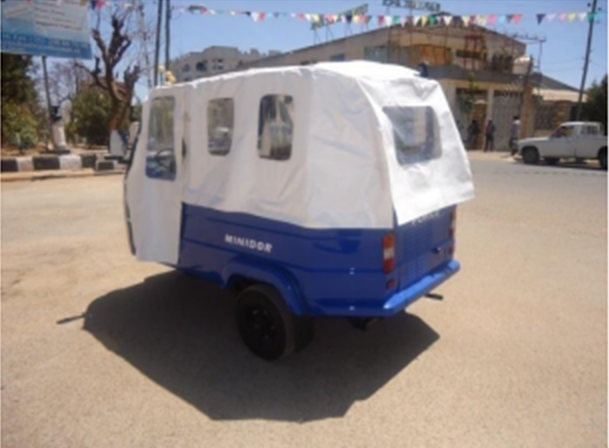

Minidor

MINIDOR is a solid economic source with its seating capacity for driver + 4 passengers thus increasing the earnings by more than 33% compared to other 3 wheelers. A preferred way to economize the cargo delivery costs for small and medium size businesses for short distance. Its features comprises of extremely spacious, comfortable & safe for city & long distance travels.

Technical Specifications

  • Model : TD 499, DI
  • Type :Single Cylinder, DI, 4 Stroke, Water cooledDiesel engine
  • Displacement : 499 cc
  • Max. Output :8.8 HP @ 2800-3000 RPM 6.5 kW
  • Max. Torque : 22 Nm @ 2000-2200 RPMr
  • Air cleaner : Dry type
  • Oil filter : Spin on Type
  • Oil sump capaciaty : 1.75 Ltrs.

  • Type : Dead Rigid, I-Beam & Reverse Elliot Type
  • Outside Dia : 160 mm.

  • Type : 4 DS 10/2
  • No. of gears : 4 forward, 1 reverse
  • Rear Axle : Independent Trailing Axle (Live)

  • Туре :Steering Wheel with Rack & Pinion Mechanism.
  • Frame : Rectangular ladder type

  • Front : Leading link type with coil springs & shock absorbers.
  • Rear : Solid torsion bars with inde pendent swiniging arms & shock

  • Service Brakes : Dual circuit hydraulic Self Adjusting Type
  • Front : 4-Piston, Ventilated, Disc Brakes with Wear Indicator
  • Rear : Drum Brakes
  • Parking Brake : Mechanical on rear wheels

  • No. : Three & one spare
  • Size : 4.50 x 10" - 8 PR

  • System voltage : 12 volts
  • Battery : Lead acid 50 Ah
  • Alternator : 24 Amps @ 12 volts
  • Wiper motor :14 W., Rack & Pinion type, Spindle
  • FUEL TANK : 14 Litres

  • Wheel base : 1700
  • Overall width : 1490
  • Overall length : 2764
  • Track rear :1330
  • Min. Ground Clearance : 140

  • Max. Permissible : 990
  • GVW : 235
  • Max. Permissible : 755

26 Minidor Gallery

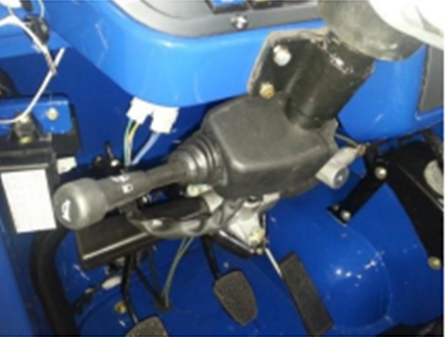

Car Type Combination Switch

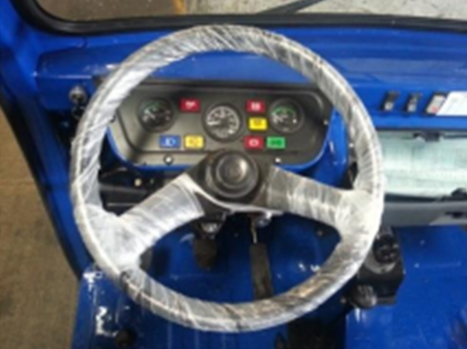

Car Type Steering Wheel

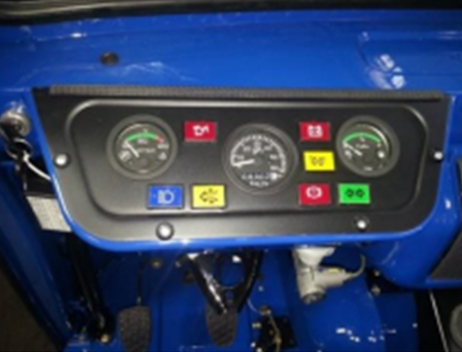

Instrument Panel

Car Type Combination Switch

Car Type Steering Wheel

Instrument Panel
