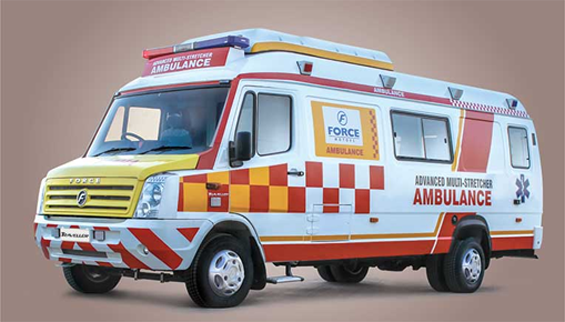

T1 Ambulance

Complies with National Ambulance Code

T1 ambulance has Mercedes derived, Highly Powerful and fuel efficient FM 2.6 CR Power train. Its monocoque body ensures total safety and car like ride quality.

Technical Specifications

  • Model : FM 2.6 CR
  • Emission : BS IV
  • Type :4 Cylinder, Common Rail
  • Displacement : 2596 cc
  • Max. Output : 67kW(91hp)@2800rpm
  • Max. Torque : 250Nm@1400-2400rpm

  • Front : Dead Rigid, I-Beam & Reverse Elliot Type
  • Rear : Live Rigid

  • B - Type : 9+P+D
  • C - Type : 9+P+D
  • D - Type : 9+P+Dd

  • Type : Synchromesh
  • No. of Gears : 5 Forward & 1 Reverse (5th Gear Overdrive)

  • Front : Dead Rigid, I-Beam & Reverse Elliot Type
  • Rear : Live Rigid

  • Wheel Base : 3350
  • Overall Length : 5415
  • Overall Width : 1900
  • Overall Height : 2550 (2780 with AC)
  • Overhang Front : 900
  • Overhang Rear : 1165
  • Ground Clearance : 210

  • Front : Dead Rigid, I-Beam & Reverse Elliot Type
  • Rear : Live Rigid

  • Front : 4-Piston, Ventilated, Disc Brakes with Wear Indicator
  • Rear : Drum Brakes
  • Parking Brake : Mechanical on rear wheels
  • Wheels and Tyres : 215/75 R 15”

  • Max FAW : 1710
  • Max RAW : 2030
  • Max GVW : 3740
  • Turning Radius : 6.5 M
  • Fuel Tank Capacity : 70 Litres

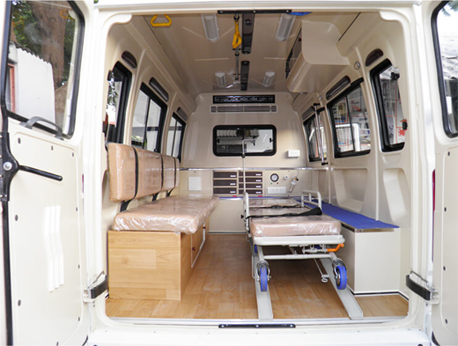

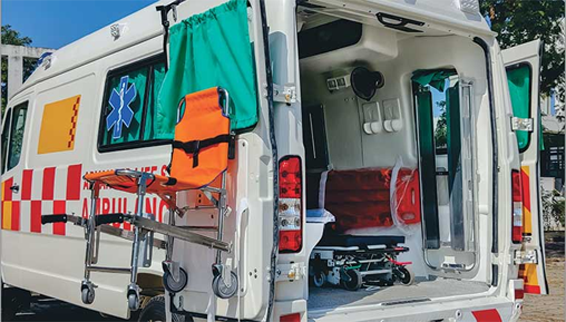

T1 Ambulance Gallery
