T1 Delivery Van

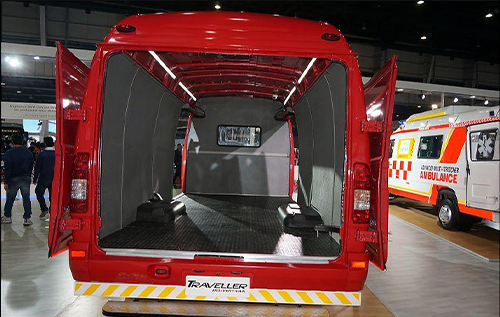

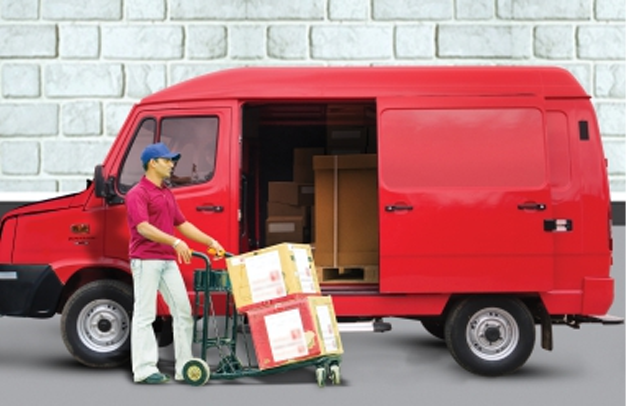

Powered by the Mercedes derived FM 2.6 CR ED BS-VI engine. Best in class fuel mileage. T1 Delivery van is a product to have the option of sliding doors on driver and co-driver side in addition to 270o opening rear door. Ensures easy loading and unloading of cargo. Low loading height for T1 750 mm & T2 775 mm

Technical Specifications

  • Engine : FM 3.2 CR
  • Emission : BS-VI Stage 2
  • Type : 4 Cyl. Common Rail, DI TCIC
  • Bore x Stroke : 90.9 x 100
  • Displacement : 2596 cc
  • Max Output : 85kW (114 hp) @ 2950 rpm
  • Max Torque : 350 Nm @ 1400 - 2200 rpm

  • Clutch : Dry friction, single plate & hydraulically actuated

  • Model : G32-5
  • Type : Synchromesh
  • No. of Gear : 5Front +1Reverse

  • Maximum GVW : 4530
  • Payload : 1664

  • Type : Power Steering

  • Type : Monocoque construction

  • Front & Rear : Spring Semi elliptical
  • Anti roll bar : Front-Yes, Rear (Optional)
  • Shock absorbers : Hydraulic telescopic double acting at front & rear

  • Type : Hydraulic, Dual circuit, vacuum assisted
  • Auto Slack Adjuster : Yes
  • ABS with EBD : Optional
  • Front : Disc
  • Rear : Disc
  • Parking Brake : Mechanical acting on Propeller Shaft

  • Size : 235 / 65 R16
  • Tyre Type : Radial with Tube / tubeless (4 + 1)

  • Wheel Base : 4020
  • Overall Width : 1900
  • Overall Length : 6966
  • Overall Height : 2550
  • Ground Clearance : 200

  • Cargo Box L X W X H : 4653 x 1680 x 1830
  • Cargo Area (m 2) : 7.3
  • Cargo Vol (m 3) : 13.2

  • Fuel Tank : 70 liters

  • Seating Capacity : 1 + D
