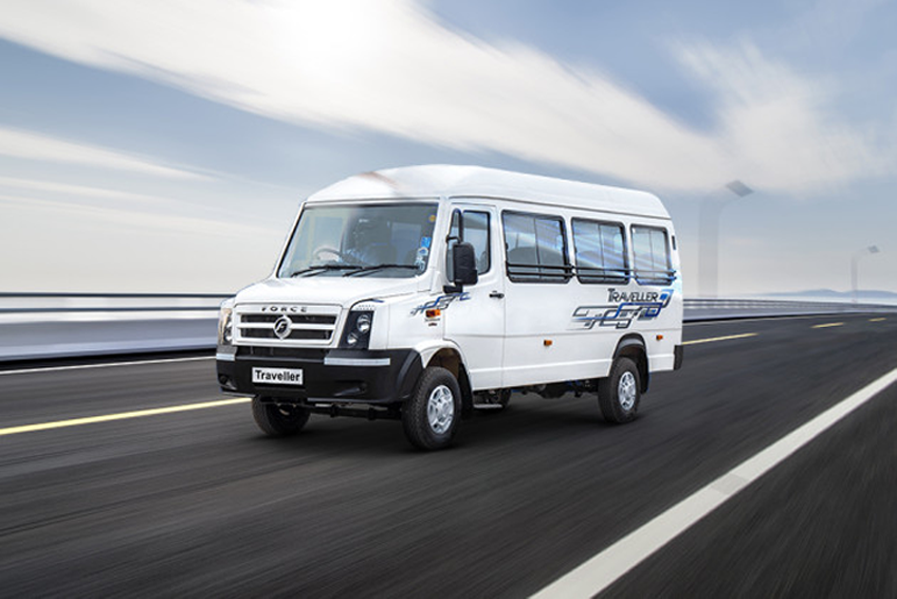

T1 Traveller
We focus on developing high quality, high utility through superior product design, state-of-the-art engineering and innovative marketing.with expertise in design and development of the full spectrum of automotive components, aggregates and vehicles.
Technical Specifications
- ENGINE : FM2.6CR
- Emission : BS-II/BS-III
- Type : 4 Cylinder, Common Rail
- Displacement : 2596cc
- Max Power : 67 kW (90 hp) 2800rpm
- Max Torque : 250 Nm @ 1400-2400 rpm
- Front : Semi Elliptical Leaf Springs with Hydraulic Shock Absorber and Anti Roll Bar.
- Rear : Semi Elliptical Leaf Springs with Hydraulic Shock Absorbers
- Steering : Mechanical/Power Steering (Optional)
- Type : Synchromesh
- No. of gears : 5 Forward, 1 Reverse (5th Gear Overdrive)
- Turning Radius (m) : 6.5
- Wheels & Tyres : 215/75 R 15
- Wheel base : 3700
- Overall Length : 6065
- Overall Width : 1900
- Overall Height : 2770 (with AC)
- Overhang Front : 900
- Overhang Rear : 1465
- Ground Clearance : 210
- Front : Dead Rigid, I-Beam & Reverse Elliot Type
- Rear : Live Rigid
- Туре : Hydraulic, Dual circuit, vacuum assisted ABS with EBD
- Front : 4-Piston, ventilated, disc brakes with wear indicator
- Rear : Drum Brakes
- Parking : Mechanical on rear wheels
- Max FAW : 1780
- Max RAW : 2280
- Max GVW : 4060
- Fuel Tank Capacity : 70 Litres

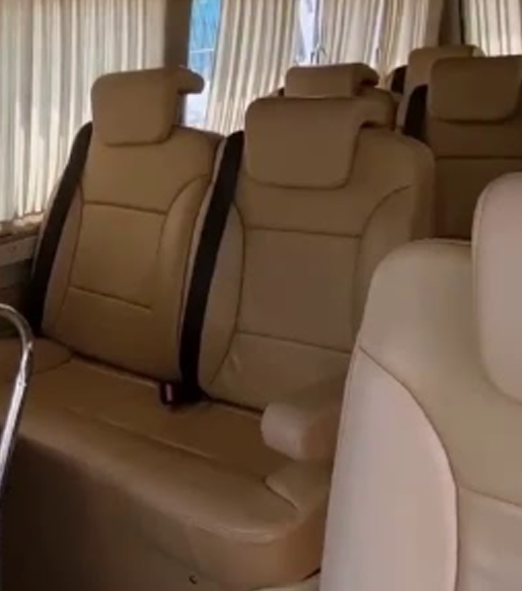

- SEATING CAPACITY : 12+D, 16+0
- Seating type : Recliner / High back
